Post your temps

[Nick R]

It's screencap time! Another thread made me think of this when I posted, so let's have a "HWMonitor voltages/temps/fans" screencap post thread!

I'll start

My desktop
-ASUS M4A88TD-V EVO/USB Motherboard
-AMD Phenom II X4 965BE OC 3.75Ghz (Underclocks at idle, as in pic)
-8GB Corsair XMS3 DDR3-1333
2x- XFX Radeon HD 5770 1GB (OC, 910Mhz Core/1315Mhz Memory)
-Intel X25-V 40GB SSD
-Western Digital WD6400AAKS (640GB, 7200RPM)
-Samsung HD502HI (500GB, 5400RPM)
-XFX Pro Modular 650W (Seasonic-Made) 80PLUS Bronze, Power supply

Direct link to zoom in
http://i266.photobucket.com/albums/ii279/rudolphna/screncap22.png



[Towncivilian]

• abit IP35 Pro motherboard
• Intel Q9300 2.5ghz quad-core
• 8GB Corsair DDR2-800 RAM
• AMD Radeon HD 6950, extra stream processors unlocked
• Creative SoundBlaster X-Fi XtremeGamer Fatal1ty sound card (what a stupid name)
• HP LP2465 24" and Dell 2005FPW 20" monitors
  Hard drives:
  • WDC WD2500KS 250GB 7200RPMGB 7200RPM SATA2
  • WDC WD10EADS 1TB SATA2
  • Seagate ST3500630AS 7200RPM 500GB SATA2
  • Samsung HD103SI 1TB 5400RPM SATA2
  • Seagate FreeAgentDesktop 500GB SATA2 USB
• TSSTcorp SH-S223L optical drive
• Floppy disk drive




[Trav]

About 10f over ambient i7 3.47 GHz.



[Drew99GT]

Uploaded with ImageShack.us

Gateway laptop with Intel Core 2 Duo 2.2Ghz



[gathermewool]

Mass Effect 3!!!

HP DM1-3020US 11.1"



[gathermewool]

Dell XPS: i7 920 + ATI HD5850



[Quattro Pete]

My main PC:

HTPC:

Netbook:



[Colt45ws]

I suppose it was mine?
http://colt45.ws/misc/desktop02072011.jpg
That is under 4-thread Prime95.
8-thread torture test raises it to around 137W/105A with an average temp of 69C (156F) at 40C internal temp. Peak Ive seen is 77C under 4-thread when the A/C failed.
It runs under full load 24/7.
Intel Core i7 920 @ 4.01GHz (191x21=4011MHz @ 1.36Vcore)
Gigabyte GA-EX58-UD5
3x 2GB Corsair XMS DDR3-1600 (764MHz 8-8-8-24 2T @1.64V)
XFX AMD Radeon HD6950 2GB (Flashmodded to HD6970 specs)
Sound Blaster X-Fi Titanium (recapped)
Crucial M225 64GB SSD
Highpoint RocketRAID 3510 (4x Samsung F3R 1TB RAID5=~2.8TB usable)
Cooler Master HAF 932 case
Cooler Master UCP 900w
LG 10x Blu-Ray burner.
Windows 7 Professional 64-bit
Prolimatech Megahalems with 2x 120mm Fans in push/pull. Case cooling is stock. 230mm on the front, side and top. 140mm on the back.



[dparm]

eVGA X58 FTW3
Core i7 950
Cooler Master N520 (Arctic Silver 5)
Kingston HyperX 6GB DDR3-1600
256GB Crucial Performance3 SATA3 SSD
eVGA GTX 260
Audinst HUD-MX1 external DAC
Lite-On DVD+RW
Thermaltake 750W PSU
W7 x64 Pro

All inside an Antec P180. No overclocking. I typically run the case fans at the lowest setting, and I pride myself on my cable management.



Idle:

Near its hottest (after running Prime95):



[Nick R]

Originally Posted By: dparm
eVGA X58 FTW3
Core i7 950
Cooler Master N520 (Arctic Silver 5)
Kingston HyperX 6GB DDR3-1600
256GB Crucial Performance3 SATA3 SSD
eVGA GTX 260
Audinst HUD-MX1 external DAC
Lite-On DVD+RW
Thermaltake 750W PSU
W7 x64 Pro

All inside an Antec P180. No overclocking. I typically run the case fans at the lowest setting, and I pride myself on my cable management.



Idle:

Near its hottest (after running Prime95):

Whoo, that 12V rail is a little on the high side, almost out of spec.



[Quattro Pete]

Originally Posted By: Colt45ws
I suppose it was mine?
http://colt45.ws/misc/desktop02072011.jpg

XM Play. Nice! That's what I use, too.



[dparm]

Originally Posted By: Nick R
Originally Posted By: dparm
eVGA X58 FTW3
Core i7 950
Cooler Master N520 (Arctic Silver 5)
Kingston HyperX 6GB DDR3-1600
256GB Crucial Performance3 SATA3 SSD
eVGA GTX 260
Audinst HUD-MX1 external DAC
Lite-On DVD+RW
Thermaltake 750W PSU
W7 x64 Pro

All inside an Antec P180. No overclocking. I typically run the case fans at the lowest setting, and I pride myself on my cable management.



Idle:

Near its hottest (after running Prime95):

Whoo, that 12V rail is a little on the high side, almost out of spec.


And how should I get that fixed? This was supposedly a pretty good PSU when I got it late last year.



[MrHorspwer]

i7 2600K
Asus P8Z68-V PRO
8GB Corsair XMS3 DDR3 1600
Cooler Master 212+ CPU cooler
EVGA GTX260
AData S599 64GB SSD
WD Black 1TB HDD
Cooler Master CM690 case
Corsair 650W PSU

Sorry that it's missing a bunch. HW Monitor hasen't been updated to play with the Z68 boards yet, so any info provided by the board is missing.



[Nick R]

Originally Posted By: dparm
Originally Posted By: Nick R
Originally Posted By: dparm
eVGA X58 FTW3
Core i7 950
Cooler Master N520 (Arctic Silver 5)
Kingston HyperX 6GB DDR3-1600
256GB Crucial Performance3 SATA3 SSD
eVGA GTX 260
Audinst HUD-MX1 external DAC
Lite-On DVD+RW
Thermaltake 750W PSU
W7 x64 Pro

All inside an Antec P180. No overclocking. I typically run the case fans at the lowest setting, and I pride myself on my cable management.



Idle:

Near its hottest (after running Prime95):

Whoo, that 12V rail is a little on the high side, almost out of spec.


And how should I get that fixed? This was supposedly a pretty good PSU when I got it late last year.


I've never cared much for Thermaltake PSUs, the two that Hardwaresecrets tested (TR2) both failed under maximum load. The 5V was barely in spec as well (4.75 is out of spec). I would probably replace it to make myself feel better. Seasonic, XFX, OCZ, Corsair, PCPower & Cooling are the brands I personally would stick with.



[Colt45ws]

My Linux Toy:
Code:


Dash ~ # sensors

i5k_amb-isa-0000

Adapter: ISA adapter

Ch. 0 DIMM 0: +69.0 C (low = +105.0 C, high = +120.0 C)

Ch. 0 DIMM 1: +59.5 C (low = +105.0 C, high = +120.0 C)

Ch. 1 DIMM 0: +70.0 C (low = +105.0 C, high = +120.0 C)

Ch. 1 DIMM 1: +61.0 C (low = +105.0 C, high = +120.0 C)



coretemp-isa-0000

Adapter: ISA adapter

Core 0: +56.0 C (high = +80.0 C, crit = +100.0 C)



coretemp-isa-0001

Adapter: ISA adapter

Core 0: +52.0 C (high = +80.0 C, crit = +100.0 C)



coretemp-isa-0002

Adapter: ISA adapter

Core 1: +56.0 C (high = +80.0 C, crit = +100.0 C)



coretemp-isa-0003

Adapter: ISA adapter

Core 1: +55.0 C (high = +80.0 C, crit = +100.0 C)

These are full load numbers as well

Dell Poweredge SC1430
Two Dual Core Intel Xeon 5148 2.33GHz (Low Voltage; 40W TDP)
Four 1GB DDR2-667 FB-DIMM
MSI nVidia 8500GT 512MB (Cut x16 PCIe connector to fit x8 slot)
2x Seagate 7200.11 500GB (RAID 0)
Gentoo Linux 10.1
Case, power, cooling all factory.
Dont have a screen shot since I have not gotten around to setting up X and KDE.



[greenaccord02]

43c on this box.
Atom D525 with a little tiny fan in a mini-itx box. Four logical processors of FURY!



[Scorch]

Thermaltake Transformer Case
120mm Intake Fan
2 90mm Intake Fans
1 90mm out Fan
1 120mm out Fan
AMD Athlon X2 4800+ @ 3.2Ghz
Arctic cooling Freezer Pro
2GB DDR2 Ram
ATI x850 Pro
Seagate 320GB Sata2 HDD

System was built 4 years ago, runs at a cool 34* C during idle with Arctic Silver paste and the Arctic Cooling Pro heatsink/fan and all the fans kicking. Gets up around 50*C full load (100% CPU usage for 5 hours) and the gfx card reaches ~80* C, needs a better fan. Was an extreme gaming machine in its day, today it falls on its face with most high performance games. College and work have killed my computer building for the time being, and sadly I am typing this on a mac

But this rig still runs Linux Mint at a very good pace, along with some CSS/HL:2 through wine at around 200FPS constant.



[OVERKILL]

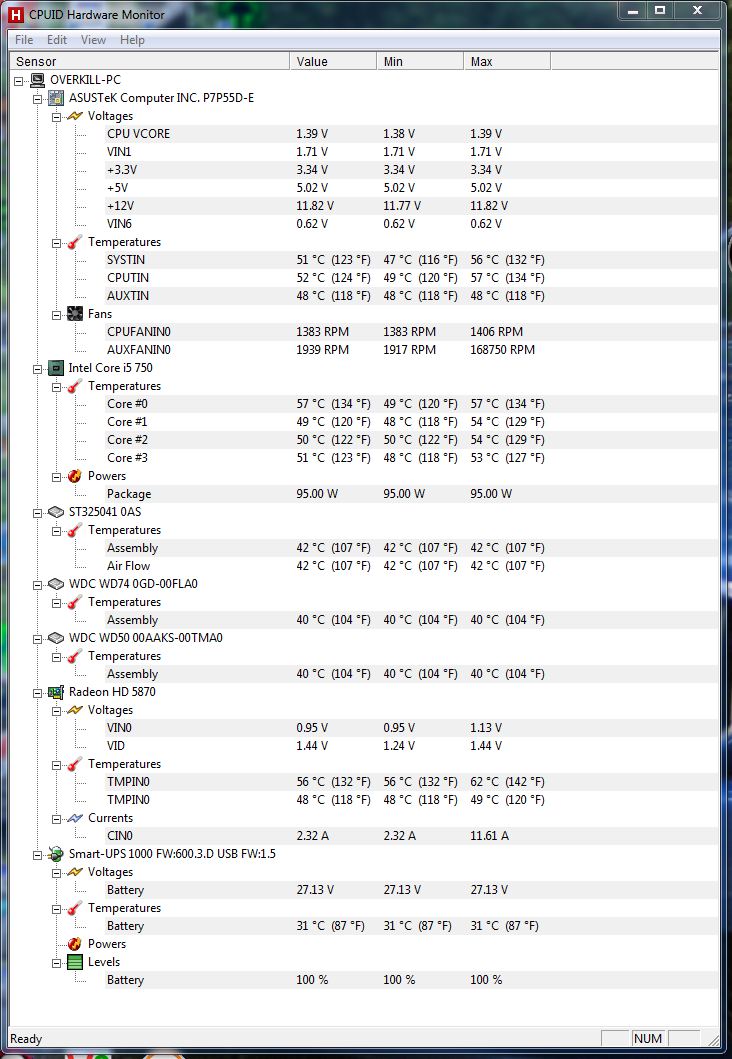

Lian Li PC75 case
4x80mm fans
ASUS P7P55D-E Motherboard
Intel Core i5 750 @ 4Ghz
8GB Corsair Dominators (4x2GB)
Corsair water cooling
ASUS ATI Radeon 5870
ASUS Xonar D1 Audo
Intel Pro1000CT PCI-E NIC
RAID 10 (2TB)

Ambient is 30C right now in the room. CPU usage was around 25% when this was taken.

It'll hit 62C with Prime running.



[Drew99GT]

I have a question: Speedfan and Coretemp both show my core temps to be 10 degrees C cooler than HWMoniter. What's up with that???



[Nick R]

This is under full load.

2 instances of Folding@home, 1 instance of Prime95, and furmark.
Here is the full system, I forgot some stuff
CPU: AMD Phenom II X4 965BE (OC 3.75Ghz)
MOBO: ASUS M4A88TD-V EVO/USB3.0
RAM: 8GB (2x4GB) Corsair XMS3 DDR3-1333 (9-9-9-24)
GPU: 2x XFX Radeon 5770 1GB GDDR5 in CrossfireX (reference cooler, overclock 910 core, 1310 Memory)
HDD 1x Intel X25-V 40GB SSD, 1x WD WD6400AAKS, 1x Samsung 500GB
Optical: 1x Samsung (TSSTCorp) BD-ROM/CD-DVD RW w/Lightscribe
1x LG (Hitachi-LG) CD-DVD/RW w/Lightscribe
Case: Antec 300
Cooling-
CPU: Corsair H50 Water cooling kit. CPU fan in HWMonitor is the pump, constant speed. Radiator is on the rear exhaust, with 2- 120mm Antec Tri-cool in push-pull config, both on low (~1100RPM, and both are Double Ball-Bearing)
Intake Fans: 1x-120MM NZXT (Sleeve Bearing, and 1100RPM) Front
1x-120MM Rocketfish (Ball Bearing, 1200RPM) Front
1x-120MM Silverstone FN121 (Rifle Bearing, 1200RPM) Side panel

Exhaust: H50 Water cooling with 2 Antec Tri-cool 120mm Rear
Antec Tri-cool 140MM Top Exhaust Fan on low (~1000RPM)


PSU: XFX Pro Modular 650W
Amperage: Single 12V Rail, 52 amps
Fan: 140MM Bottom Mounted
Efficiency: 80PLUS Bronze (~87% under medium load)
+5V and 3.3V are both DC-DC, off the main +12V output.

Total System power consumption: Estimated at 500 watts under 100% load
Both Graphics cards exhaust outside the case.
Top GPU-z Is primary Graphics card, bottom is secondary. Fan speed on auto.
